INTERDOLLY

Would you like to increase the payload capacity of your low-loader while ensuring optimal weight distribution? The Nooteboom Interdolly offers maximum flexibility for heavy and exceptional transport. By positioning the Interdolly between the gooseneck and the loadingbed, you can easily adapt your low-loader configuration to any transport assignment.

Dolly

Stroke 600 mm
Axles Pendulum
Payload per axle 12-14 t
nr of axles 1-2-3
Axle distance 1360 or 1510 mm

Interdolly

Flexible and quick to deploy

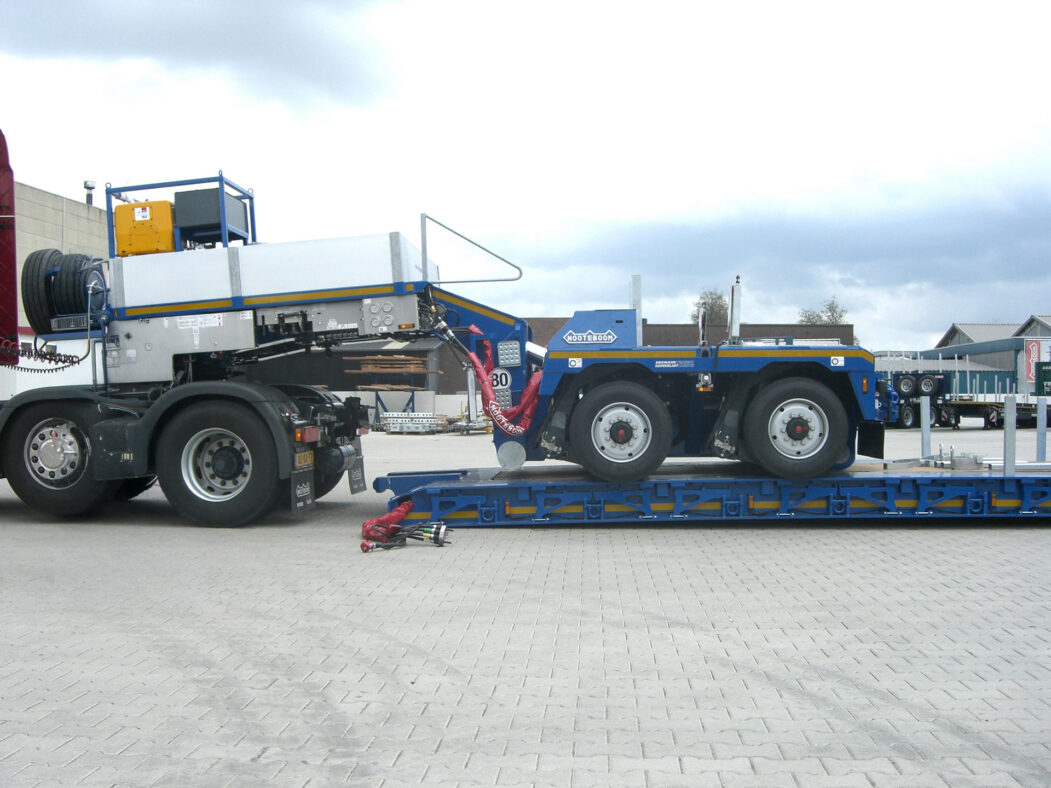

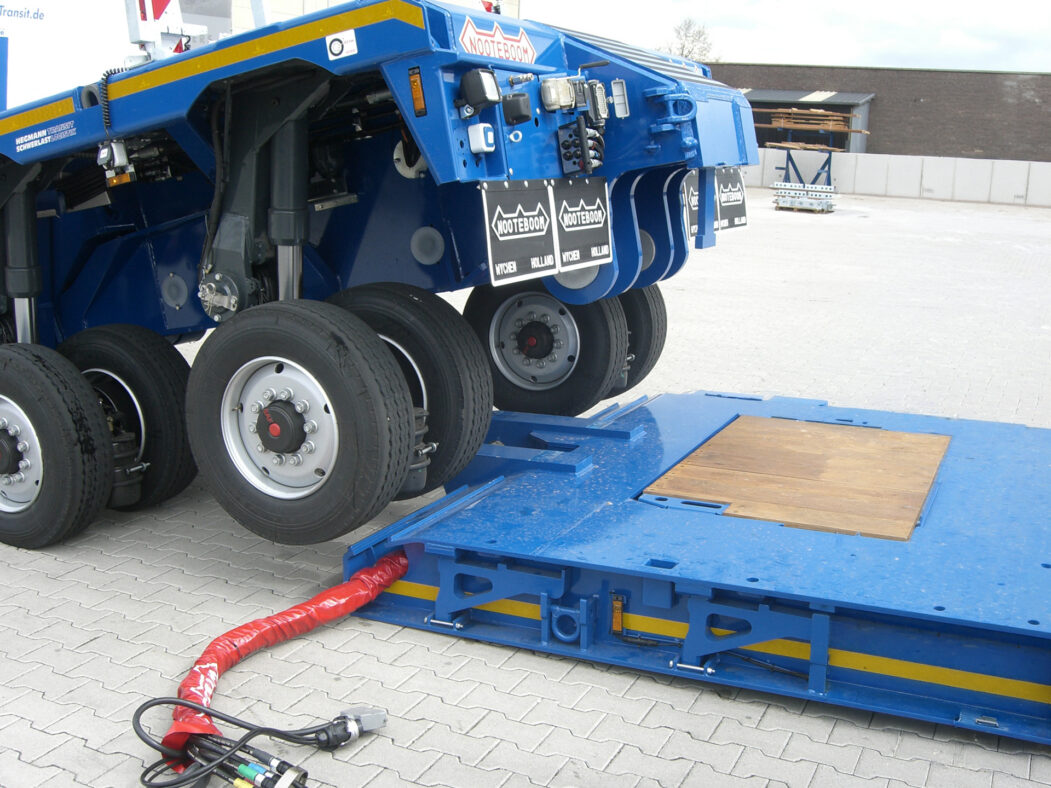

Thanks to the uniform hook connection at both the front and rear, the Interdolly can be connected and disconnected quickly. With a short adapter, the Interdolly can also be coupled directly to the rear axle bogie, allowing the low-loader to be used as a semi-low-loader. This provides a versatile transport solution for a wide range of heavy and exceptional loads. More about the new Interdolly here

Nooteboom EURO-PX3 with Interdolly teaser video

Compact design maximum performance

The Interdolly is a compact front axle bogie with pendulum axle lines and delivers excellent driving characteristics. Thanks to the advanced steering system with a maximum steering angle of 70 degrees, you benefit from exceptional manoeuvrability, even on confined construction sites and complex transport routes.

Fully tailored to your transport needs

The Nooteboom Interdolly is available in various configurations:

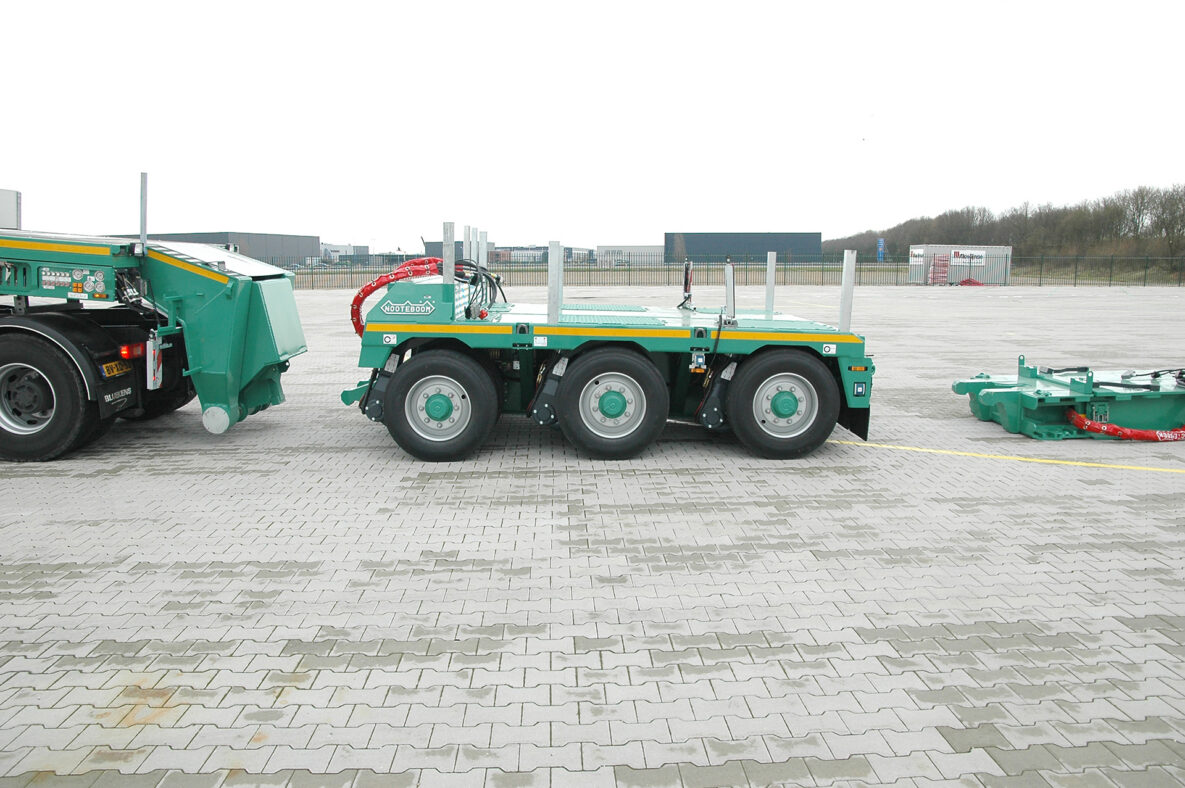

1, 2 or 3 pendulum axle lines
Hydropneumatic suspension with raise/lower function and 600 mm stroke
Technical axle loads of 12 or 14 tonnes per axle line at 80 km/h
SAF or BPW axles
Tyre size 285/70R19.5
Axle distance of 1360 mm or 1510 mm
Axle bogie width of 2740 mm

Durably and safely built

As standard, the Interdolly is equipped with TÜV-certified lashing rings, stake pockets and hose rupture protection on every pendulum axle line. In addition, the Interdolly is also available in a non-detachable version, allowing you to further reduce unladen weight and total combination length.

The smart choice for heavy transport

Whether you transport heavy machinery, industrial installations or other exceptional loads, the Nooteboom Interdolly expands the capabilities of your low-loader combination. You benefit from higher payload capacity, optimal weight distribution and maximum flexibility for every transport challenge.
